| Parameter | Value |
|---|---|
| External dimensions (L × W × H) | 235 × 246 × 243 cm |
| Sauna cabin (internal) | 200 × 210 cm |
| Structure | C24 (EN 338) |
| Facade | Thermory® 26 × 140 mm |
| Wall and roof insulation | 100 mm / U = 0,35 W/m²K |
| Glazing | ESG 8 mm |
| Heater (standard) | Harvia Cilindro PC90 – 9 kW, 400 V |
| Capacity (persons) | 4–5 |
| Total weight | ~1400 kg |
| Roof covering | EPDM 1,2 mm |
- Harvia Cilindro PC90 9 kW heater with stones (90 kg)
- Harvia Xenio controller with temperature sensor
- Two-level benches in knot-free aspen
- 8 mm ESG glazing in a handmade wooden frame
- Side door of our own manufacture
- Warm LED lighting under the benches
- Supply-and-exhaust ventilation with adjustment

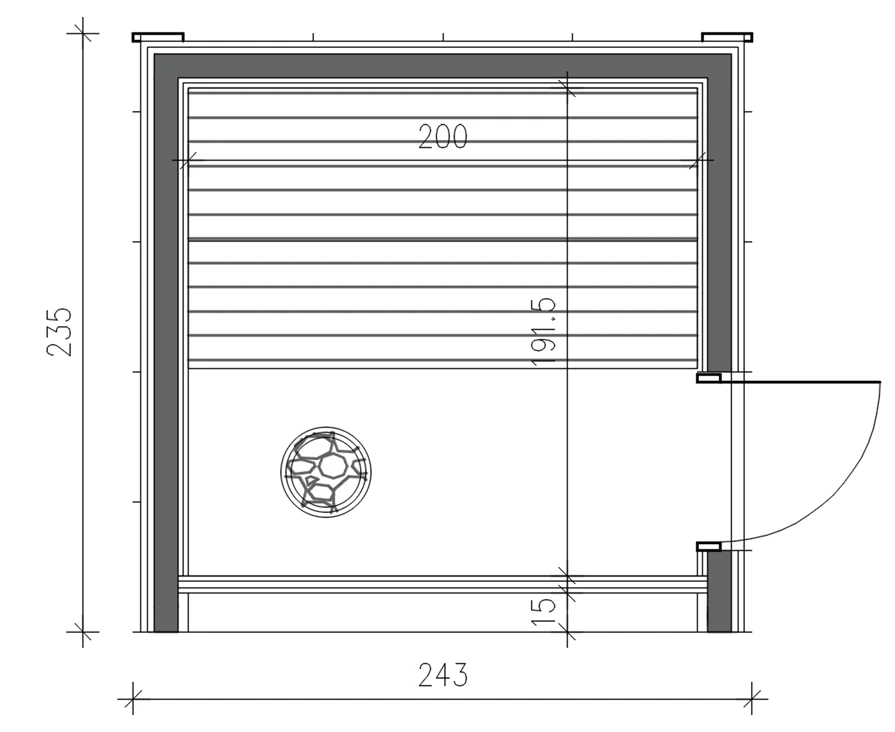

Download technical floor plan (PDF)
The plan includes foundation dimensions, connection points and the crane working zone.

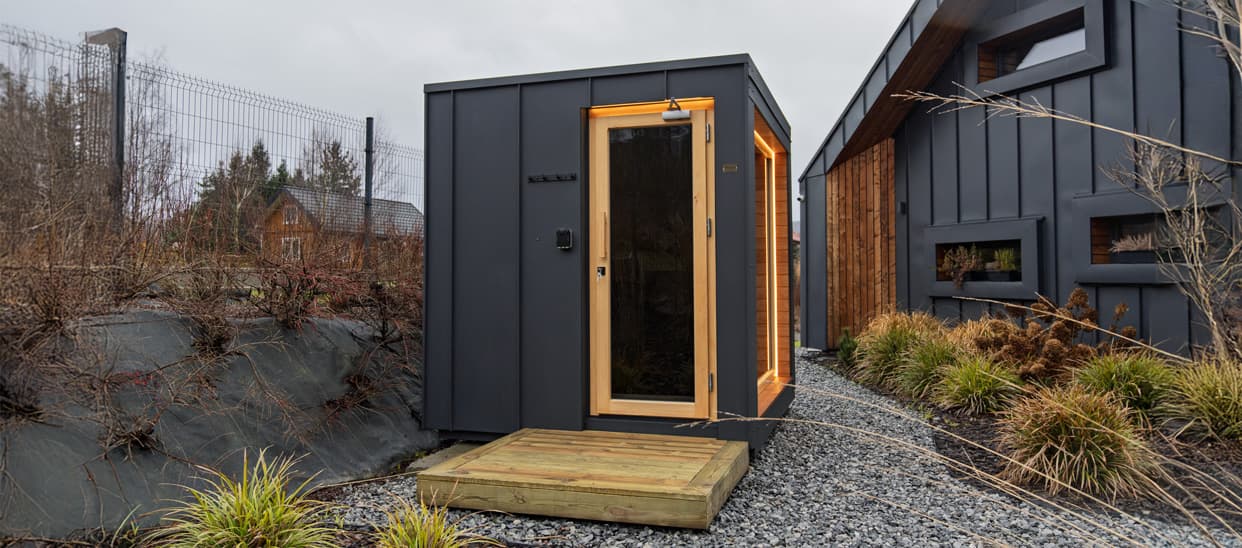

Selected installations of this model for customers across Europe.
More installations of this model are on the way.
See all projectsCustomer reviews
„We needed a sauna for a small plot – Liekki fitted perfectly. The glazing is stunning and installation took literally two hours.”
Questions about this model
Who is Liekki for?
For smaller plots or anyone who wants a panoramic sauna in the most compact form. It seats 4–5 people and measures just 235 × 246 cm externally.
Does Liekki have a vestibule?
No – it is a pure sauna cabin with panoramic glazing and a side entrance. If you need a changing area, consider Ilmaa or Vetta.
What power supply does the heater need?
The standard Harvia Cilindro PC90 9 kW requires a three-phase 400 V supply with 3×16 A protection. A wood-fired option is also available.
How does installation work?
The sauna arrives fully assembled. Placement on the foundation takes about 2 hours – at ~1400 kg a smaller crane is enough.
