| Parameter | Value |
|---|---|
| External dimensions (L × W × H) | 400 × 240 × 260 cm |
| Sauna cabin (internal) | 240 × 220 cm |
| Structure | C24 (EN 338) |
| Facade | Thermory® 26 × 140 mm |
| Wall and roof insulation | 100 mm / U = 0,35 W/m²K |
| Glazing | ESG 8 mm |
| Heater (standard) | Harvia Cilindro PC90 – 9 kW, 400 V |
| Capacity (persons) | 4–6 |
| Total weight | ~1900 kg |
| Roof covering | EPDM 1,2 mm |
- Harvia Cilindro PC90 9 kW heater with stones (90 kg)
- Harvia Xenio control unit with temperature sensor

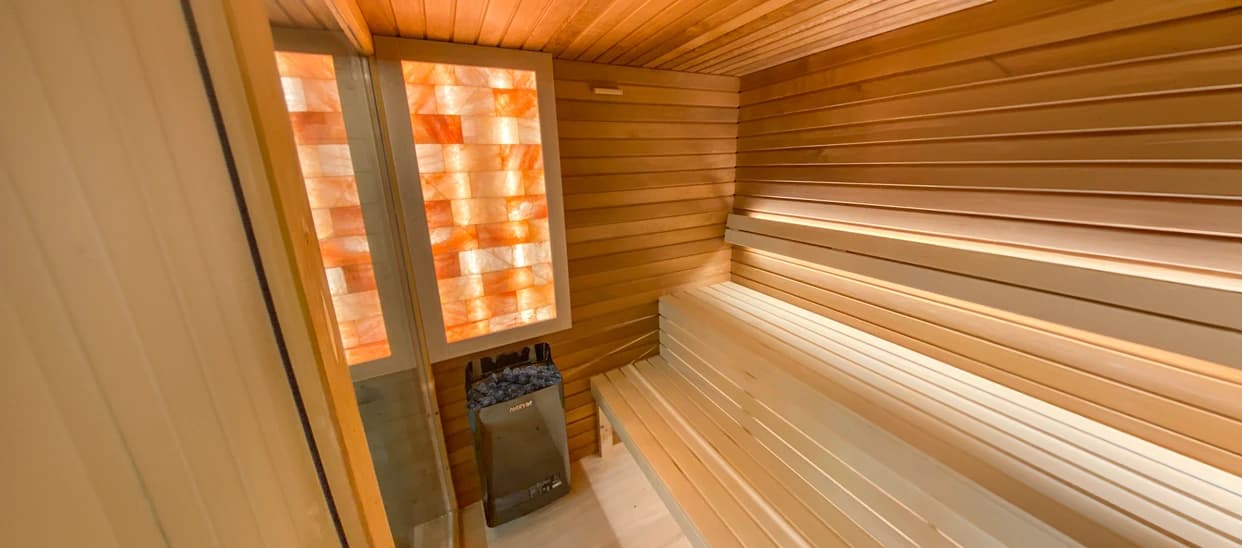

- Two-level benches in knot-free aspen
- Full-glass ESG 8 mm door with a handmade frame
- LED lighting under the benches (warm white)
- Adjustable supply and extract ventilation
- Headrests, bucket, ladle and hourglass
The plan includes foundation dimensions, connection points and the crane working zone.
Selected installations of this model for customers across Europe.
Customer reviews
„The sauna was standing on the slab within 2 hours and we had our first session that same evening. The build quality and the handmade door are in a class of their own.”
Questions about this model
What power supply does the Harvia 9 kW heater need?
The Harvia Cilindro PC90 requires a three-phase 400 V supply with 3×16 A protection and a 5×2.5 mm² cable. Connection must be made by a qualified electrician – we supply the wiring documentation with the sauna.
Can I order the Maata with a wood-fired stove?
Yes. In the configurator you can choose the wood-fired Harvia Pro 20 with a certified roof flue penetration. This is the solution for plots without a 400 V supply.
How does installation work and how long does it take?
The sauna arrives in one piece on a crane truck. Setting it on the foundation takes about 2 hours; the heater is connected by an electrician. Your first session is possible 24 h after unloading.
Doesn't the glazing chill the sauna in winter?
We use 8 mm tempered ESG glass, and the heat balance of the build accounts for the glazing – that is why we fit a 9 kW heater instead of the typical 6 kW. The sauna reaches 90 °C even at –15 °C outside.
